Predator

HOW TO DATA LOG WITH DIABLO PREDATOR

Data Logging

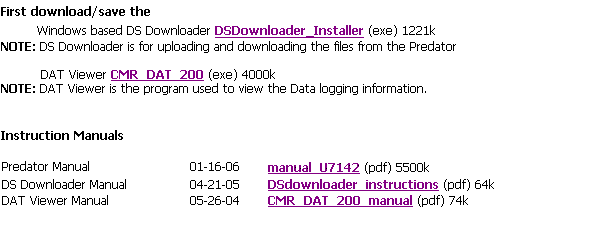

*all downloads and manuals can be found at www.diablosport.com

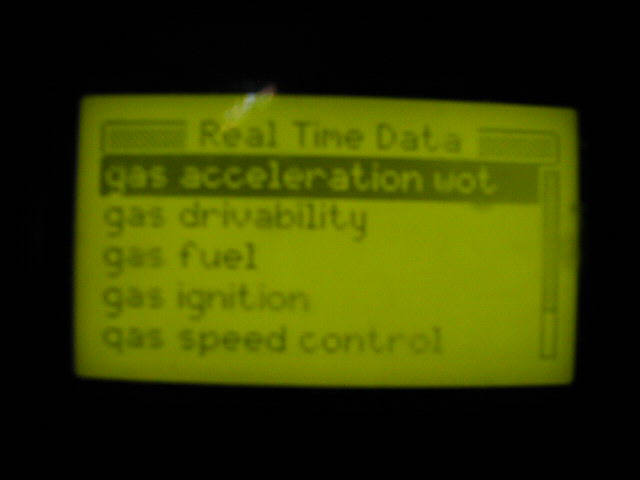

STEP 5 You are now on the Real Time Data Screen, Here you will have a 6 options.
1. Gas Acceleration WOT - Contains parameters that are commonly viewed during dyno tuning and wide open throttle runs.
2. Gas Drivability - Contains parameters that are commonly viewed during drivability testing and monitoring.
3. Gas Fuel - Fuel related parameters
4. Gas Ignition - Ignition related parameters
5. Gas Speed Control - Vehicle speed related parameters
6. Gas Trans - Transmission related parameters

STEP 1 Plug Predator to your Mustang via the OBD II Port located under the driver center console side

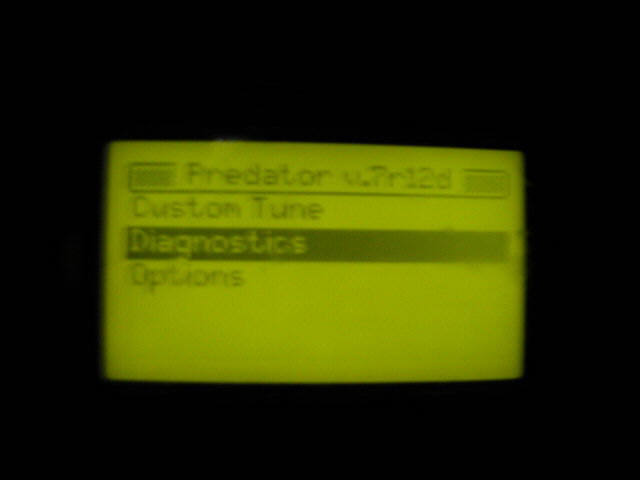

STEP 2 Scroll Down to Diagnostics and Click On Diagnostics

STEP 4 There will be two screens that are IMPORTANT: click continue for both

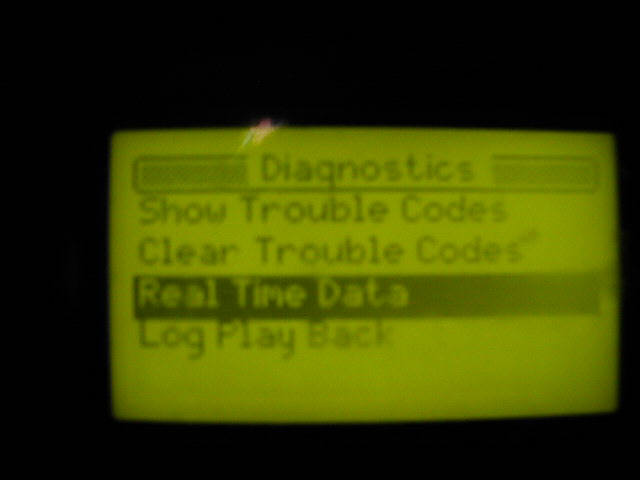

STEP 4 You are now on the Diagnostics Screen, Scroll Down to Real Time Data and click on it

Click on Images to Enlarge

1. RPM
2. IAT
3. FRP
4. SPARKADV
5. LOAD
6. FEEDBACK FUEL CTRL STATUS
7. ENG COOLANT TEMP
8. INTAKE AIR TEMP 2
9. SHORT TERM FUEL TRIM-BANK 1
10. SHORT TERM FUEL TRIM-BANK 2
11. THROT POS BEFORE FMEM SUB

The 6 I highlighted are the one I choose 6 once you select your options hit esc.

STEP 6 Depending on which one you choose there will be different parameters to choose from.
For my example I will be working with GAS ACCELERATION WOT.

STEP 7 Once you click on GAS ACCELERATION WOT the next screen will ask Show all and Select from a list. I would click on Select from a list. Next screen is the DATA RATE Screen click on Fast Rate. (Fast Rate - will sample the values at a higher rate and will be able to log data for about 45mins, the more parameters you select the lower the granularity for values will be, Diablo Sport recommends no more than 8 for best sample rate.

STEP 8 The next screen will ask you to begin data logging Click YES and this How you data log using the Diablo Predator when you are done hit esc to stop the Data logging.

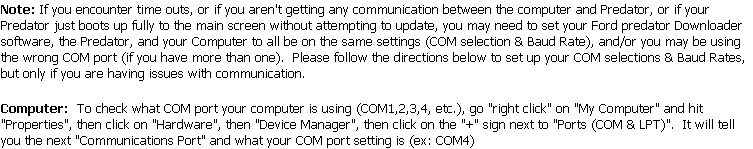

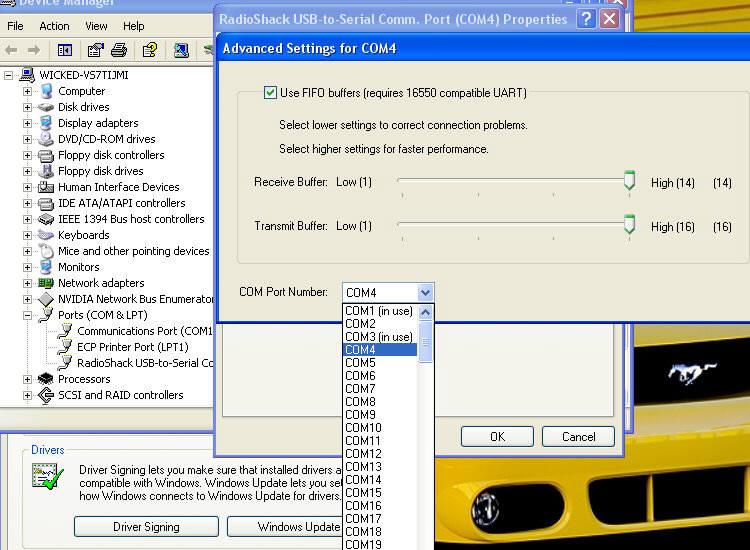

Required Items

1: Serial Cable: FOR OLDER COMPUTERS
Standard Straight-through DB9 (9-pin to 9-pin) RS232 serial cable (6 foot cable is more than enough). Check your computer to see if you have a male or a female port on the back, as some are different. You will need a male end to go into the Predator.
(Radio Shack Part # 26-117, 6-ft DB9 male to DB9 female shielded cable.)

2: Power Adapter:
CLASS 2 TRANSFORMER
OUTPUT: 12VDC 1000mA (1 Amp)
(Radio Shack Part #273-1776)
